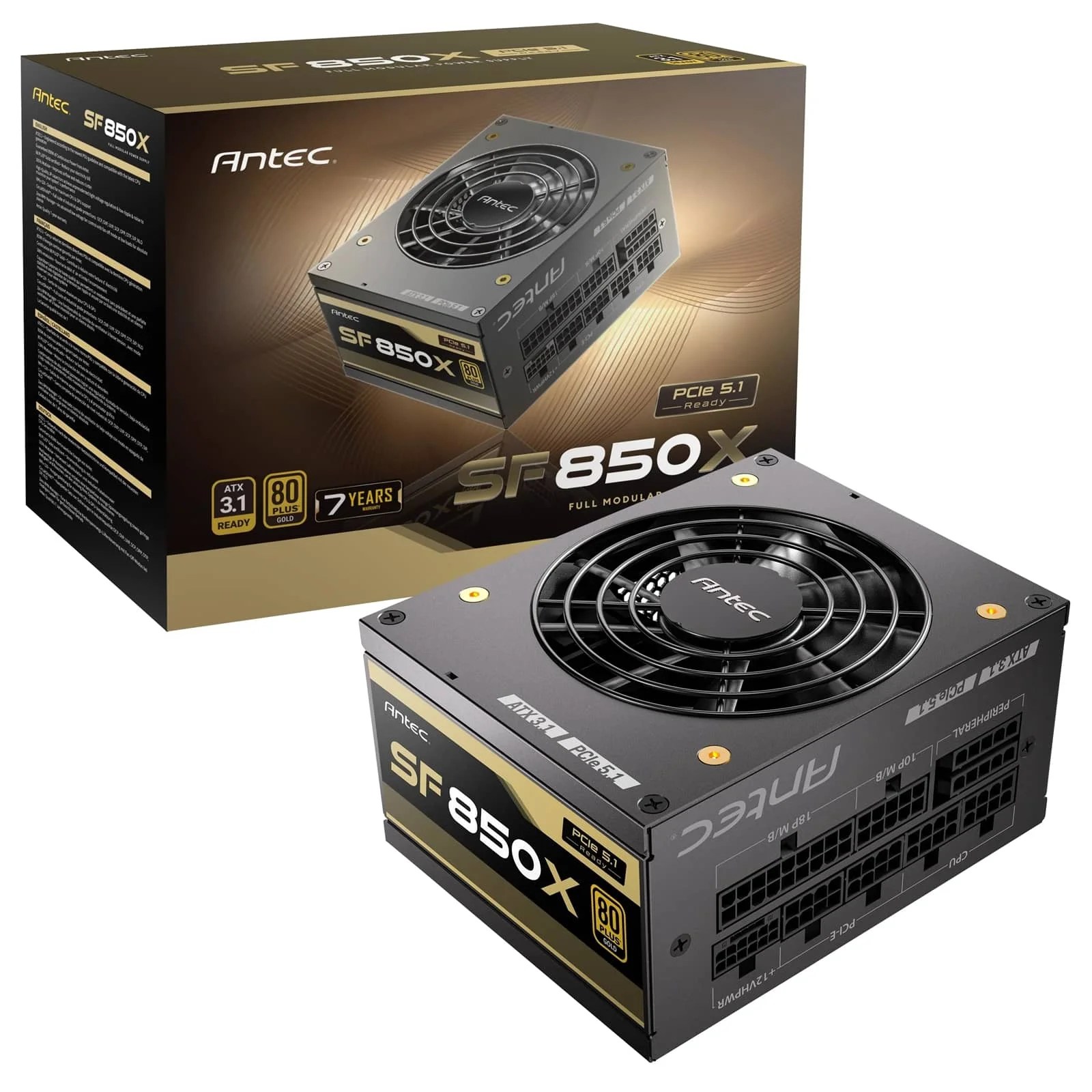

Antec SF850X 850W Power Supply – 80 PLUS Gold Certified, Fully Modular, SFX 4.1, ATX 3.1, PCIe 5.1 Ready
£150.18
80 Plus Gold Certification The SF850X range is 80 Plus Gold certified, achieving an efficiency of up to 92% at a load of 50%.
High-Quality JP Capacitors With high-quality JP capacitors included, the SF850X range delivers a reliable life expectancy and quality assurance.
Power The SF850X range offers some real power, with the 12V output rated over 90% of the total level, ensuring smooth operation. The 80 Plus Gold efficiency enables your high-end components to work to their full potential.
Structure The structure of a power supply decides the main performance such as efficiency and temperature, but with an active clamp design and DC-DC module, the SF850X range ensures supreme performance.
Full Range Voltage Power Off Protection With a full range voltage and SCP function, if the power is cut off you don’t need to worry, the SF850X will activate the power off protection function to protect your PSU and motherboard effectively.
Professional Looking Black is the colour, with the all-black finish and the flat black cables giving your gaming PC a clean look. The flat black cables enable builders to easily manage and save space, creating a great-looking PC.
Warranty The SF850X range comes with a 7-year warranty.
Specification
Model
SF850X 850W
Wattage
850W
Input Voltage
100-240 VAC
Input Current
12A-6A
Input Frequency Range
50-60Hz
PFC
Active PFC
Power Good Signal
100-150ms
Hold Up Time
10ms
Efficiency
92%
MTBF
100,000 Hours
Protection
OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO
Operation Temperature
0-40°C
Safety
CE / CCC
Cooling
92mm silent cooling fan
Noise
40dBA
80 PLUS Certified
Gold
Colour
Black
Connections
1 x 24 (20+4) pin MB
1 x 16 (12+4) pin PCIE 5.1 12VHPWR
2 x 8 (4+4) pin CPU
4 x 8 (6+2) pin PCI-E
6 x SATA
2 x Molex
What’s In The Box
PSU Cable Ties Screws
Product Dimensions (L x W x H)
236 x 184 x 106mm
Packaging Dimensions (L x W x H)
559 x 500 x 203mm
Weight
Net: 1.8 KGs
Gross: 2.1 KGs
Master Carton Quantity
6
